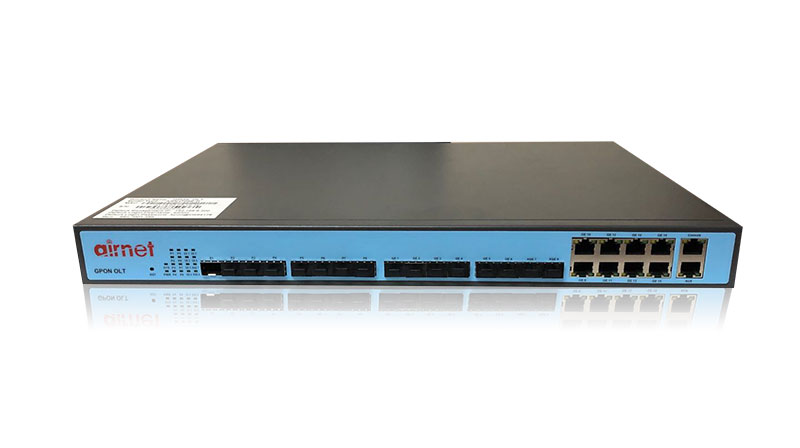

OLT-ARN3708E-G
Product Description
ARN3708E-G GPON OLT, which provides 8 GPON ports, 8 GE copper RJ45 ethernet ports, 6 SF(GE) and 2 SFP+(10GE) optical uplink ports, it has high reliability, highly dense broad band access and robust switching and routing abilities, is a new generation of broad bandand multiservice access OLT devices oriented towards the service-integrated network.
ARN3708E OLT integrate swith network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 8 PON ports, each port supports upto 128 ONUs, the whole device supports upto 1024 ONUs. Small size and high density OLT, easy toinstall, convenient, flexible and easy to deploy high performance broad band access network. It is appropriate to be deployed in compact room environment. The OLT scan also be used for “Triple-Play” applications.
Features
- 1U 19 inch standard box GPON OLT with 8 PON ports
- Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
- L3 function, support static route, ARP proxy, hardware Host Routes, hardware Subnet RoutesTcontDBA, Gemporttraffic
- QoSbased on port, VID, TOS and MAC address(16K Mac address)
- Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
- Support IGMP snooping, IGMP Proxy
- Specialized design for system breakdown prevention to maintain stable system
- Support port-based rate limitation and bandwidth control
- Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/link detection/remote upgrade of software
- Support ONT automatically discovery, auto configuration
- Support ONT firmware can be auto upgraded, download ONT firmware to OLT from web/tftp/ftp
- Support SNMP, telnet, CLI, OMCI/OAM and Web management
- Support power-off alarm function, easy for link problem detection
- Support broadcasting storm resistance function
- Firewall function
- Support remote software upgrade
- Two power supply redundancy design
OLT-ARN3708E-G - Technical Parameters
| Items | Unit | Specifications |
| PON
standard. |
GPON ITU-T G.984.x | |
| 8*GPON SFP Ports (Class C+), Receiving sensitivity: | ||
| ≤ | ||
| -30dBm(Saturation Optical -12dBm). Power, | ||
| Transmitting optical power: +3～+7dBm | ||
| PON | Transmission distance: 20KM. Max splitting | |
| interface | ratio1:128 | |
| Upstream 2.488G | ||
| Speed | ||
| Downstream 1.244G | ||
| Wavelength | nm | Tx1310, Rx 1490 |
|
Uplink |
GE | 8*copper Ethernet ports 10/100/1000M auto-
negotiation |
| SFP GE | 6*SFP(GE) | |
| SFP 10GE | 2* SFP+ (10GE) | |
|
Layer 3 |
Support static route, ARP proxy, hardware Host
Routes, hardware Subnet Routes |
|
| Management
Ports |
1*10/100BASE-T out-band port, 1*CONSOLE port |
|
| Management
Mode |
SNMP、Telnet、CLI、WEB、SSH v1/v2 |
|
| Backplane |
Gbps |
128 |
|
MAC table |
K |
16 |
| Operating
condition |
℃ |
Operating temp: -5 ~ +55 |
| Storing
condition |
℃ |
Storing temp: -40 ~ +85 |
| Humidity | % | 5~90(non-condensing) |
| Power
consumption |
W |
≤45 |
| Dimension | Mm | 442mm×200mm×44mm（L×W×H） |
| Net weight | Kg | 3.1Kg |
Shipping packaging
| Description | Quantity | Weight | Carton Size |
| Shipping packaging | 1pcs /ctn | 4.5kg/ctn | 575*380*115mm |
